Thuis /Producten/Industrieel Luchtgordijn/Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels

Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels

2
MOQ
$199
Prijs
Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Montagetype: Muur / raambevestiging
Gewicht: 20 kg
Fantype: Cross Flow
Materialen voor ventilatoren: ABS-kunststof of aluminium
Ventilatorsnelheid: 2 snelheden
Controletype: Remote+Buttom
Vermogensniveaus: 3 vermogensniveaus
Verwarmingselement: PTC-verwarmer
Voeding: 220-230V/380-400V~50/60Hz
Motorvermogen: <160W tot <300W
Kachelverwarming: 6 / 4 /2 kW tot 12 / 8 /4 kW
Luchtsnelheid: 7,5-8,5 M/S
Luchtvolume: 1000 tot 2400 m3/uur
Geluidsniveau: 57 tot 60 dB
Netto gewicht: 14,5 tot 24 kg
Markeren:

3 Power Levels Industrial Air Curtain

,

Cooling & Heating Functions Air Curtain

,

PTC Electric Heater Heating Air Curtain
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: Theodoor
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Theodoor 3G Cooling and Hot Air Curtains for Doors
Product Overview

3G cooling and heating air curtain provides both cooling and heating functions, delivering comfortable air flow suitable for all seasons.

Key Features
  • PTC Electric Heater with safety performance
  • Metal casing with painting, high fire resistance, compact construction and easy installation

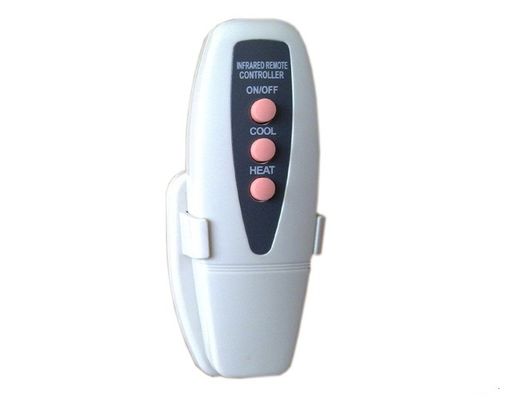

  • High and low speed with wireless remote control for various environments
  • 30-second warm air delay with overheating protection for double safety
  • Creates temperature-differentiating air barrier to prevent cold draughts
  • Reliable motors designed for long-term operation
  • Three power levels controlled by remote
Technical Specifications
MODEL Size (mm) Voltage (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m³/h) Noise level (dB) Net Weight (Kg)
RM-1209S-D/Y3G 900x195x265 220v ~50Hz <160 6 / 4 /2 7.5-8.5 1000 57 14.5
RM-1212S-D/Y3G 1200x195x265 <200 8 / 5 /3 1500 58 17
RM-1215S-D/Y3G 1500x195x265 <230 10 / 7 /3 1900 59 20.5
RM-1209S-3D/Y3G 900x195x265 380v ~50Hz <160 6 / 4 /2 7.5-8.5 1000 57 14.5
RM-1212S-3D/Y3G 1200x195x265 <200 8 / 5 /3 1500 58 17
RM-1215S-3D/Y3G 1500x195x265 <230 10 / 7 /3 1900 59 20.5
RM-1218S-3D/Y3G 1800x195x265 <300 12 / 8 /4 2400 60 24

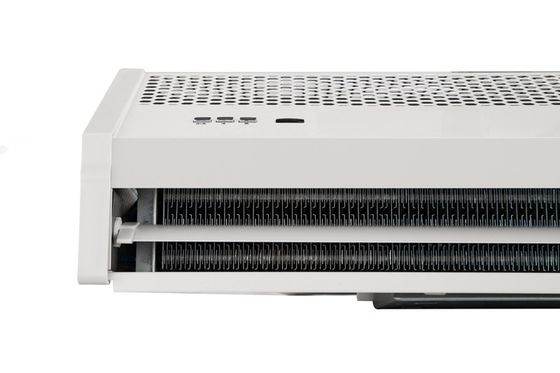

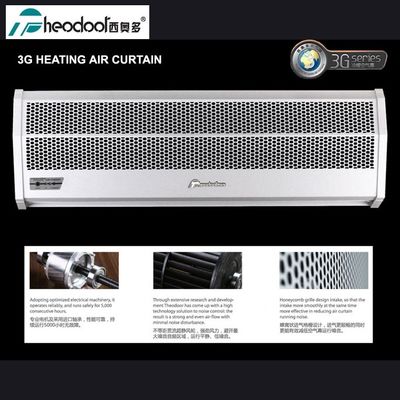

Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels 0 Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels 1 Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels 2 Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels 3
Applications

Theodoor Air Curtain is installed above entryways of stores, restaurants, hotels, etc. It effectively isolates indoor and outdoor environments, maintaining temperature and humidity. Particularly useful in air-conditioned spaces to preserve indoor conditions and reduce energy consumption. Additionally prevents dust, pests, and harmful fumes from entering.

Commercial use
Supermarkets, shopping malls, department stores, small stores, hotels, restaurants, hospitals, schools, movie theaters, fitness halls, clubs, bars, cafes, barbershops, waiting rooms, subways, commercial buildings, museum entrances 		Industrial use
Factories, workshops, warehouses, spinning mills, frozen goods factories, paint factories
Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels 4
Packaging & Shipping
Theodoor 3G Industrial Air Curtain with Cooling & Heating Functions PTC Electric Heater and 3 Power Levels 5
Frequently Asked Questions
What are the main functions of Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select suitable air curtain?

Consider these factors when selecting an air curtain:

  • Application
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Air curtain size
  • Design and appearance
  • Noise level
  • Power consumption
