Thuis /Producten/Industrieel Luchtgordijn/Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

100
MOQ
$199
Prijs
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Montagetype: Muur / raambevestiging
Gewicht: 15 kg
Type ventilatormotoren: AC
Beschikbare lengte: 60cm,90cm,100cm,120cm,150cm,180cm,200cm
Warmte: 3 kW, 4 kW, 5 kW, 6 kW, 8 kW, 10 kW, 12 kW
Spanning/frequentie: 220v of 380v /50Hz
Verwarmingselement: PTC-verwarmer
Controle: Remote+Buttom
Bedek materialen: Aluminium
Motorvermogen: <160W, <200W, <230W, <300W
Luchtsnelheid: 8,5-9,5 M/S
Luchtvolume: 1200 m3/u, 1700 m3/u, 2200 m3/u, 2700 m3/u
Geluidsniveau: 57 dB, 58 dB, 59 dB, 60 dB
Productgrootte: 900x190x260 mm, 1200x190x260 mm, 1500x190x260 mm, 1800x190x260 mm
Kachelverwarming: 6/4/2 kW, 8/5/3 kW, 10/7/3 kW, 12/8/4 kW
Markeren:

PTC Ceramic Heater Air Curtain

,

220v or 380v Industrial Air Curtain

,

50Hz Heated Air Curtain
Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: Theodoor
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
5G Series Air Heat Curtain with PTC Ceramic Heater
Theodoor heating air curtain creates an invisible air barrier that maintains clean, warm air for indoor environments.
Key Features
  1. PTC Heater - Safe operation with high power output creates temperature-differentiated air barriers to prevent cold airflow and ensure comfortable heating
  2. Dual airflow modes - Provides heating or normal air to effectively block cold draughts while maintaining interior comfort
  3. Adjustable speeds - High and low speed settings with wireless remote control for versatile environment adaptation
  4. Overheat protection - Built-in safeguards for both heater and motor ensure energy efficiency and protection during normal operation
  5. Safety delay - 30-second warm air delay after shutdown allows PTC heater to cool, extending product lifespan
Technical Specifications
Model Product Size (mm) Voltage (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m³/h) Net Weight (Kg) Noise Level (dB)
RM-1209S-D/Y5G 900x190x260 220v ~50Hz <160 6 / 4 /2 8.5-9.5 1200 13.5 57
RM-1212S-D/Y5G 1200x190x260 <200 8 / 5 /3 1700 16 58
RM-1215S-D/Y5G 1500x190x260 <230 10 / 7 /3 2200 18.5 59
RM-1209S-3D/Y5G 900x190x260 380v ~50Hz <160 6 / 4 /2 8.5-9.5 1200 13.5 57
RM-1212S-3D/Y5G 1200x190x260 <200 8 / 5 /3 1700 16 58
RM-1215S-3D/Y5G 1500x190x260 <230 10 / 7 /3 2200 18.5 59
RM-1218S-3D/Y5G 1800x190x260 <300 12 / 8 /4 2700 24 60
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 0 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 1 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 2
What is an Air Curtain?

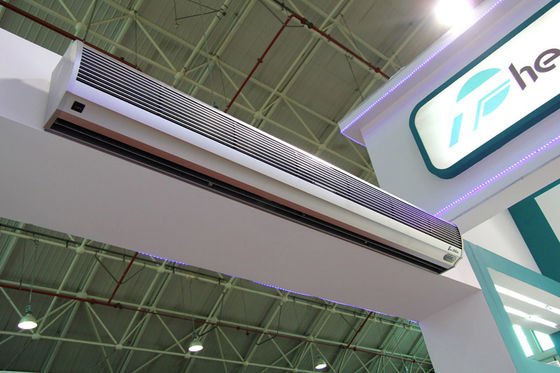

Theodoor air curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly effective when used with air conditioning systems, they preserve indoor climate conditions while reducing energy consumption. Air curtains also prevent infiltration of dust, pests, and harmful fumes from outside, creating a comfortable and clean indoor environment.
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 3
Why Choose Our Air Curtains?
  • 22+ years experience in manufacturing and exporting air curtains with over 100 models for various environments
  • Professional engineering team dedicated to continuous research and development
  • Advanced technology using modern machinery to ensure product performance and reliability
  • Premium materials selected for safety, efficiency, energy conservation and environmental protection
  • Rigorous quality control with 100% product performance testing
  • Cost-effective solutions offering long-life, high-reliability products with superior performance
  • Responsive support with prompt attention to customer queries
Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 4 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 5 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 6 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 7 Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control 8
