Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance

10
MOQ
Heavy Duty Industrial Air Curtain with 4000m³/h Airflow and 16m/s or 22m/s Air Velocity for High Performance
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Werkspanning: 230 Vac
Montagetype: Muur / raambevestiging
Luchtstroom: 4000 m3/h
Fanmateriaal: metaalventilator
Fantype: Cross Flow
Luchtsnelheid: 16m/s of 22m/s
Materiaal: Gegalvaniseerd staal
Stroom: 220V of 380V
Installatiehoogte: 4-5m
Motorvermogen: 350W, 500W, 750W, 720W, 1050W
Luchtvolume: 2900m³/h, 3890m³/h, 4950m³/h, 4700m³/h, 7350m³/h
Geluidsniveau: 57db, 58db, 59db, 72db, 74db
Netto gewicht: 26,5 kg, 31,5 kg, 39,5 kg, 29 kg, 35 kg
Maat: 900x260x310mm, 1200x260x310mm, 1500x260x310mm, 900x338x366mm, 1200x338x366mmm,
Spanningsfrequentie: 50Hz
Markeren:

4000m³/h Airflow Industrial Air Curtain

,

16m/s Air Velocity Door Air Curtain

,

22m/s Air Velocity Industrial Air Curtain

Basis informatie
Plaats van herkomst: Guangdong, China
Merknaam: Theodoor
Certificering: CCC
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

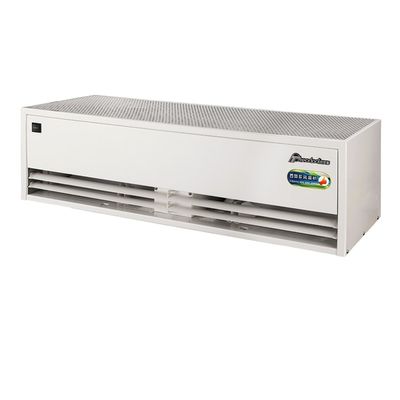

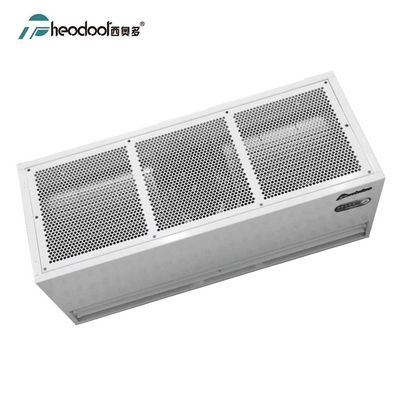

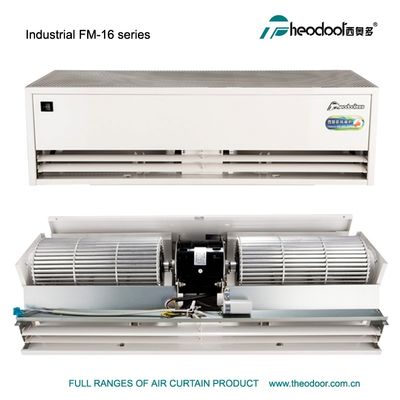

Super Large Wind Heavy Duty Industrial Door Fan Air Curtain
Product Features
  • Heavy duty industrial-grade air curtain designed for demanding environments

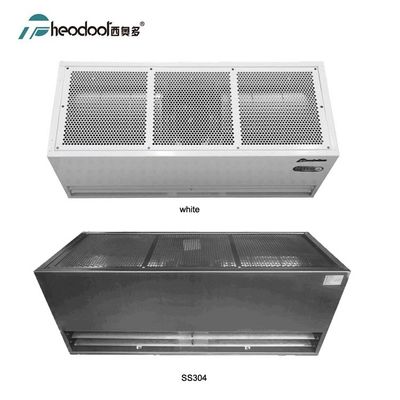

  • Durable powder-coated steel cover with optional stainless steel version
  • Recommended installation height of 4-5 meters
  • High-performance motor optimized for speed and efficiency
  • Ideal for industrial applications with special requirements
Technical Specifications
Model Size (mm) Volt./Freq. Motor Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FM-1609S 900×260×310 220v~ 50Hz 350 2900 16.5 57 26.5
FM-1612S 1200×260×310 220v~ 50Hz 500 3890 16.5 58 31.5
FM-1615S 1500×260×310 220v~ 50Hz 750 4950 16.5 59 39.5
FM-2009S 900×338×366 380v~ 50Hz 720 4700 22 72 29
FM-2012S 1200×338×366 380v~ 50Hz 1050 7350 22 74 35
Product Images
